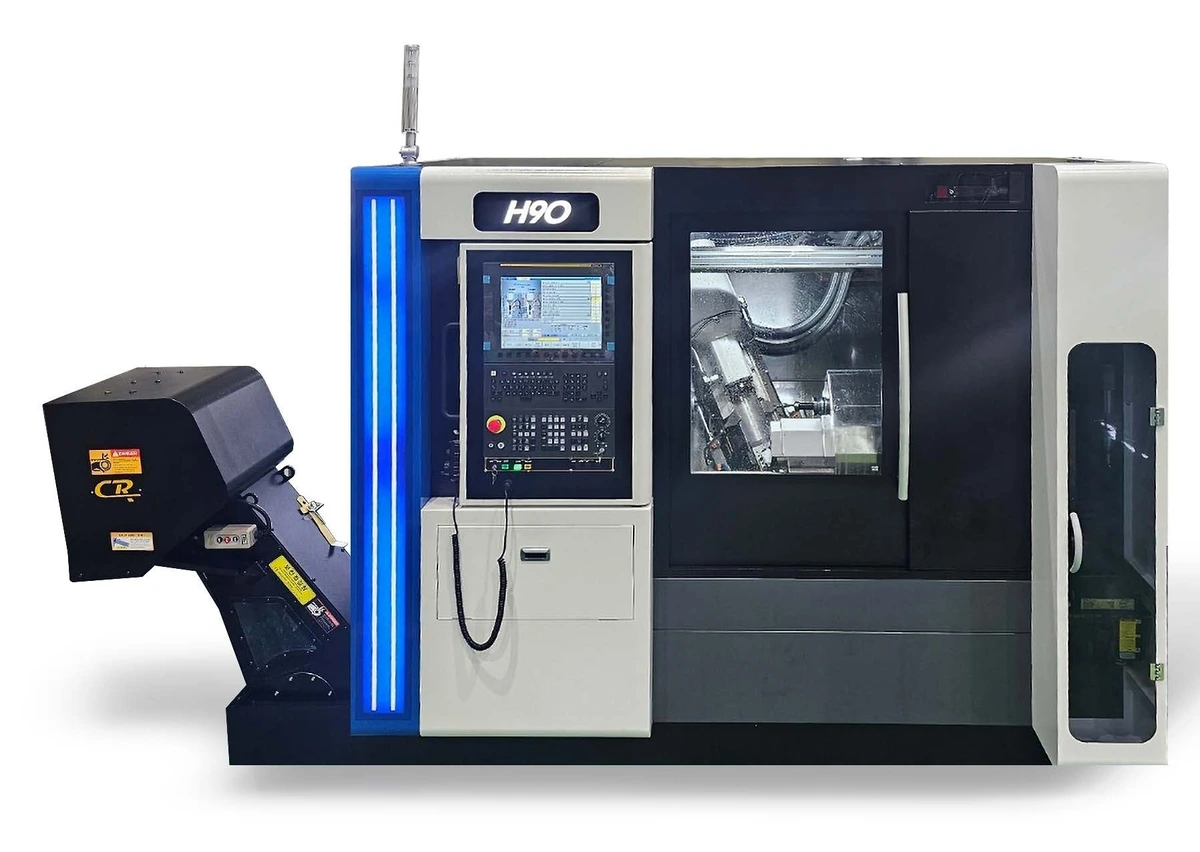

Meet the New SMG H-90 Horizontal CNC Gear Hobbing Machine
Big performance. Compact footprint. Built for modern gear production.
The new SMG H-90 Horizontal CNC Gear Hobbing Machine is designed for manufacturers who need speed, precision, flexibility, and automation without sacrificing valuable floor space.
Engineered and manufactured in South Korea, the H-90 combines proven SMG technology with a modern horizontal platform built for both puck-style and shaft-style components. Whether your production requires manual loading, gantry automation, or robotic integration, the H-90 can be configured to match your process.
With a 6,000 rpm hob spindle, 1,500 rpm torque-motor worktable, and support for both dry and wet hobbing, the H-90 is built for high-performance gear cutting in job shops and high-volume production environments alike.
The SMG H-90 is a powerful, cost-effective solution for manufacturers looking to increase productivity, improve process consistency, and add flexible automation to their gear-hobbing operations.
SMG H-90
Machine Capacity
Maximum workpiece diameter with automation: Ø90 mm
Maximum workpiece diameter with manual loading: Ø110 mm
Maximum module: M3
DP equivalent at maximum module: 8.47 DP
Maximum table speed: 1,500 rpm
Table diameter: Ø105 mm
Hob Head
Maximum hob diameter: Ø115 mm
Maximum hob length: 160 mm
Maximum hob speed: 6,000 rpm
Maximum Y-axis hob-shift travel: 150 mm
Hob-head swivel range: −45° to +115°
Hob-arbor taper: HSK-A50
Standard hob-arbor diameter: Ø16 mm
Hob-spindle output: 23.1 kW
Working Range
X-axis radial travel: 90 mm
X-axis operating range: 10–100 mm
Z-axis axial travel: 500 mm
Z-axis operating range: 80–580 mm
Tailstock-center travel: 370 mm
Rapid Traverse
X-axis radial rapid: 10 m/min
Z-axis axial rapid: 10 m/min
Y-axis tangential rapid: 5 m/min
CNC Axes
The H-90 incorporates seven controlled axes:
X-axis: Saddle radial infeed
Y-axis: Tangential hob shift
Z-axis: Cross-slide cutting feed
A-axis: Hob-head swivel
B-axis: Hob-spindle rotation
C-axis: Worktable rotation
W-axis: Tailstock travel
General Machine Specifications
Number of controlled axes: 7 — X, Y, Z, A, B, C, and W
CNC control options: Siemens or FANUC
Machine floor space without automation, L × W × H: 2,600 × 2,600 × 2,200 mm
Machine floor space with automation, L × W × H: 3,400 × 2,600 × 2,200 mm
Approximate machine weight: 5,500 kg
| Air Conditioned Electrical Cabinet |
| Auto Door |
| Hob Arbor Set (Size-Customer Choice) |
| Hydraulic System |
| Magnetic Separator with Large Capacity Chip Box |
| Oil Mist Collector |
| Siemens or FANUC |
| UPS for auto-retract |
| Wet/Dry Cutting System |
Integrated Automation Options Available!
Hard Skiving Available!
