SHIGIYA GPC-30B Compact CNC Cylindrical Grinder

Description

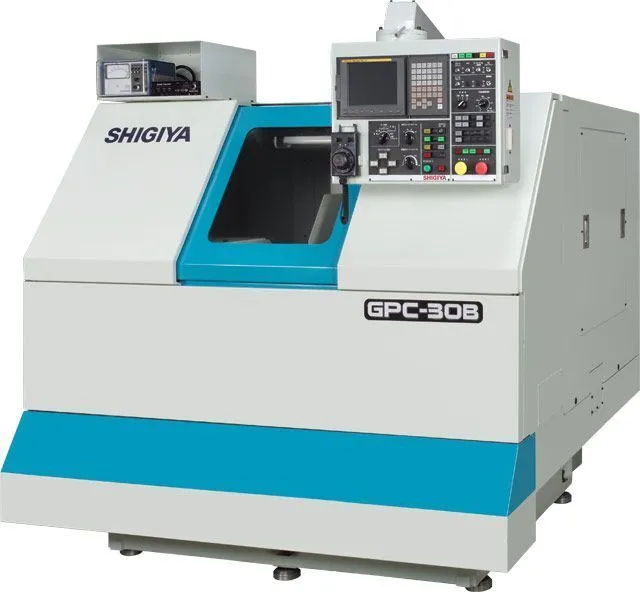

Shigiya GPC-30B Compact CNC Cylindrical Grinder

The Shigiya GPC-30B is a compact CNC cylindrical grinder engineered for the high-accuracy grinding of small, precision components. Its space-efficient design provides flexibility for manufacturers that need advanced grinding capability without sacrificing valuable floor space. Shigiya specifically positions the GPC Series for tight manufacturing environments, while maintaining the accuracy and productivity expected from a dedicated CNC cylindrical grinder.

With a Ø300 mm swing over the table, a maximum OD grinding diameter of Ø300 mm, and center-distance options of 250 mm or 400 mm, the GPC-30B is well suited for a wide range of precision shaft and cylindrical-component applications. It supports workpieces up to 150 kg, providing substantial capacity despite its compact footprint.

The machine is equipped with a 5.5 kW wheel spindle and a Ø510 × 50 mm grinding wheel, delivering a strong balance of grinding performance, rigidity, and precision.

A major advantage of the GPC-30B is its suitability for automated production. The compact machine design allows seamless integration with automatic loaders and robotic systems, helping manufacturers increase throughput, reduce manual handling, and improve overall production efficiency.
