SHIGIYA GAC-40B Compact CNC Angular Cylindrical Grinder

Description

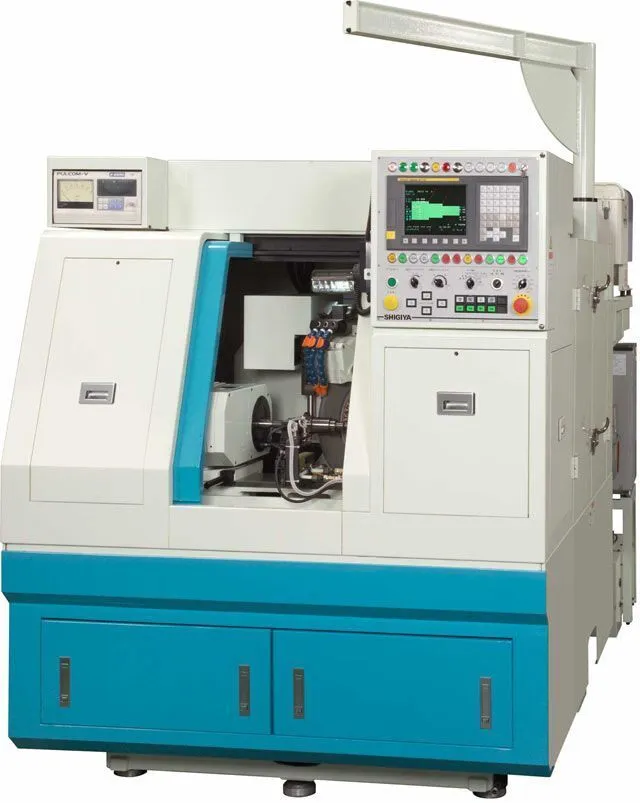

Shigiya GAC-40B Compact CNC Angular Cylindrical Grinder

The Shigiya GAC-40B is a compact CNC angular cylindrical grinder designed for efficient, high-precision grinding of smaller components while providing the capacity needed for demanding production applications. Its angular grinding configuration allows the machine to perform OD and shoulder-face grinding, helping reduce setups and improve overall machining efficiency.

With a 410 mm swing over the table, a maximum OD grinding diameter of Ø370 mm, and center-distance options of 250 mm or 400 mm, the GAC-40B offers substantial capability in a compact platform. The machine supports workpieces up to 150 kg, making it well suited for both precision job-shop work and higher-volume production.

The GAC-40B is equipped with a powerful 11 kW wheel spindle and a large Ø610 × 75 mm grinding wheel, providing the rigidity and grinding capacity needed for productive OD and face-grinding operations.

A key advantage of the GAC Series is its ability to integrate easily with automated loading and transfer equipment, allowing manufacturers to increase throughput while maintaining a compact machine footprint.

The Shigiya GAC-40B is an excellent solution for manufacturers seeking a compact, automation-ready angular grinder that combines precision, larger wheel capacity, and high production efficiency in a single machine platform.
